TDA 4,00-2,00 K10
Produktnummer:
ILTDA 4,00-2,00 K10
Produktinformationen "TDA 4,00-2,00 K10"
Schneidplatte, Schneideinsätze für Aluminiumradbearbeitung |
||
|---|---|---|

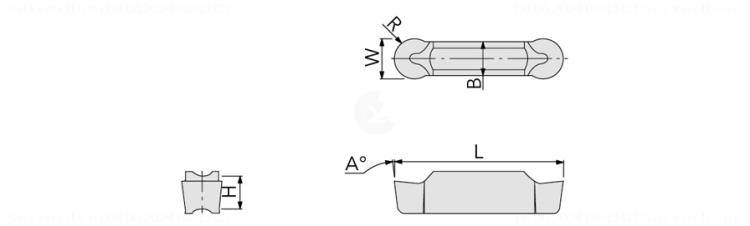

| Geometrische Daten | ||
DIN |
Beschreibung |
Wert |
| J20 | Technische Produktnummer | 6401409 |
| J21 | Identifizierende Bestellnummer | TDA 4,00-2,00 K10 |
| J3 | Firmenkennung | IL - Ingersoll |
| NSM | Normnummer Sachmerkmal | DIN4000-77 |
| BLD | Bildkennung | 10 |
| A1 | Profilform | 10 - Profilform 10 |
| A2 | Stechbreite, Nennmaß | 4 mm |
| A3 | Oberes Abmaß zu A2 | 0.002 mm |
| A4 | Unteres Abmaß zu A2 | -0.002 mm |
| DIM | Indikator für Maßsystem | 0 |
| E2 | Flankenfreiwinkel rechts | 0 Grad |
| E3 | Flankenfreiwinkel links | 0 Grad |
| F3 | Zähnezahl | 1 |
| G1 | Schneidkörperlänge | 19.8 mm |
| H11 | Normbezeichnung des Schneidstoffes, Hauptanwendung | N05-N15 |
| H12 | Normbezeichnung Schneidstoff 2. Priorität der Anwendung | K05-K15 |
| H3 | Schneidstoffbezeichnung des Herstellers | K10 |
| J1 | Normnummer | TDA 4,00-2 |
